Table of content
- Logistic Regression
- EDA
- Data Visulization
- Logistic Regression using Gradient Descent
- Logistic Regression using Mini-batch SGD
- Logistic Regression using SGD with momentum
- Logistic Regression using using sklearn
Logistic Regression
Logistic regression is a statistical algorithm used for binary classification.Logistic regression is a type of supervised learning
Given an input feature vector x , Here we want to recognize this feature vector belongs to class 0 ot class 1
$\hat{y}$= $p(y=1|x)$ , here $0<=\hat{y} <=1$
Here $x$ is feature vector. parameter - $w$ If assuming a linear relationship between the input features and target variable. then $\hat{y} = x*w^T$ $xw^T$ can be much bigger then 1 or can be negative. but here we want predicted output should be between -0 and 1.
In Logistic Regression we use sigmiod function $\hat{y} = \sigma(x*w^T)$
$\sigma(x) = {1\over(1+e^{-x})}$ if $x$ is very large then $e^{-x}$ close to 0, $\sigma(x) = 1$ if $x$ is very small then $e^{-x}$ is huge number, $\sigma(x) = 0$
Loss function
In logistic regression loss function $L(y,\hat{y}) = (1/2)*(y-\hat{y})^2 $ not work well.
we use following loss function
$$L(y,\hat{y}) = - y log(\hat{y}) - (1-y) log(1 - \hat{y})
$$
if $y=1$ then $L(y,\hat{y}) = - y log(\hat{y})$ <- that means we want $y log(\hat{y})$ as large as possible, <- that means $\hat{y}$ will be large. So if y = 1 , then we want $\hat{y}$ as biggest as possible.
if $y=0$ then $L(y,\hat{y}) = - (1-y) log(1-\hat{y})$ <- that means we want $log(1-\hat{y})$ large, <- that means $\hat{y}$ will be small.
cost function
$$J(W) =(1/m) \sum L(y,\hat{y}) $$
# This Python 3 environment comes with many helpful analytics libraries installed
# It is defined by the kaggle/python Docker image: https://github.com/kaggle/docker-python
# For example, here's several helpful packages to load
import numpy as np # linear algebra
import pandas as pd # data processing, CSV file I/O (e.g. pd.read_csv)
# Input data files are available in the read-only "../input/" directory
# For example, running this (by clicking run or pressing Shift+Enter) will list all files under the input directory
import os
for dirname, _, filenames in os.walk('/kaggle/input'):
for filename in filenames:
print(os.path.join(dirname, filename))
# You can write up to 5GB to the current directory (/kaggle/working/) that gets preserved as output when you create a version using "Save & Run All"
# You can also write temporary files to /kaggle/temp/, but they won't be saved outside of the current session
/kaggle/input/logistic-regression/Social_Network_Ads.csv
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import StandardScaler,LabelEncoder,MinMaxScaler
import seaborn as sns
from sklearn.decomposition import PCA
df=pd.read_csv('/kaggle/input/logistic-regression/Social_Network_Ads.csv')
df.head()
.dataframe tbody tr th {
vertical-align: top;
}
.dataframe thead th {
text-align: right;
}
EDA
# Drop User id
len(df['User ID'].unique())
df.drop(columns=['User ID'],inplace=True)
df.describe()
.dataframe tbody tr th {
vertical-align: top;
}
.dataframe thead th {
text-align: right;
}
df.isnull().sum()
Gender 0
Age 0
EstimatedSalary 0
Purchased 0
dtype: int64
df.dtypes
Gender object
Age int64
EstimatedSalary int64
Purchased int64
dtype: object
#conert categorical feature to numarical feature
le=LabelEncoder()
df['Gender']=le.fit_transform(df['Gender'])
#Normalize the data
sc=MinMaxScaler()
df_n=sc.fit_transform(df.iloc[:,:-1])
#train test split
x_train,x_test,y_train,y_test=train_test_split(df_n,df['Purchased'])
y_train.reset_index(drop=True,inplace=True)
y_test.reset_index(drop=True,inplace=True)
x=x_train
y=y_train
Data Visulization
#pairplot

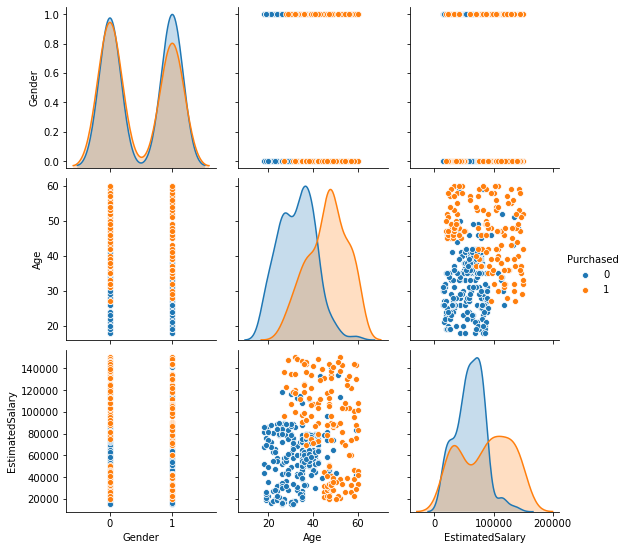

sns.pairplot(df,hue='Purchased')
<seaborn.axisgrid.PairGrid at 0x7fd93691a410>

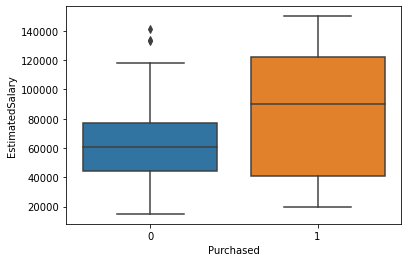

sns.boxplot(x='Purchased',y='EstimatedSalary',data=df)
<matplotlib.axes._subplots.AxesSubplot at 0x7fd936293d10>

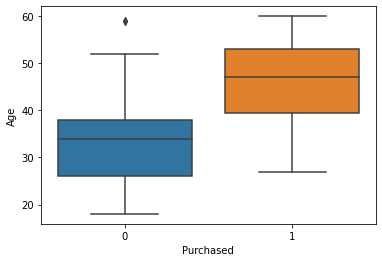

sns.boxplot(x='Purchased',y='Age',data=df)
<matplotlib.axes._subplots.AxesSubplot at 0x7fd934a0a790>
#pie plot
df_gender=df[['Gender','Purchased']].groupby('Purchased').sum()
df_gender.index=['Male','Female']
df_gender['Gender'].plot(kind='pie',autopct='%1.1f%%')
plt.show()
Logistic Regression using Gradient Descent
def sigmoid(x,w,b):
return 1/(1+np.exp(-(np.dot(x,w)+b)))
def loss(x,w,y,b):
s=sigmoid(x,w,b)
return np.mean(-(y*np.log(s))- ((1-y)*np.log(1-s)))
def grad(x,y,w,b):
s=sigmoid(x,w,b)
return np.dot(x.T,(s-y))/x.shape[0]
def accuracy(y_pred,y_test):
return np.mean(y_pred==y_test)
# initilize w and b
def gradientdescent(x,y):
w=np.zeros((x.shape[1]))
b=np.zeros(1)
ite=1000 #number of iteration
eta=0.7 #learning rate
loss_v=[]
for i in range(ite):
probability=sigmoid(x,w,b)
l=loss(x,w,y,b)
gradient=grad(x,y,w,b)
w=w- (eta*gradient)
b=b-(eta*np.sum(probability-y)/x.shape[0])
loss_v.append(l)
if i%100==0:
print(l)
return w,b,loss_v
w,b,loss_v=gradientdescent(x,y)
y_pred=sigmoid(x_test,w,b)
for j,i in enumerate(y_pred):
if i<0.5:
y_pred[j]=0
else:
y_pred[j]=1
print('test accuracy',accuracy(y_pred,y_test))
0.6931471805599467
0.46824620053813504
0.41373079197199336
0.3897267439098201
0.37674477979951454
0.36885655071698165
0.363696412749435
0.36014577026616207
0.3576113857482108
0.35575160674492456
test accuracy 0.86

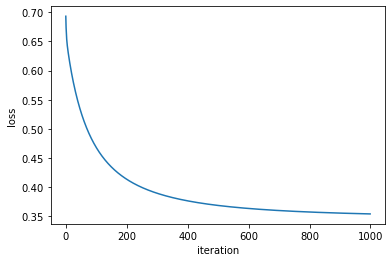

plt.plot(range(len(loss_v)),loss_v)
plt.xlabel('iteration')
plt.ylabel('loss')
plt.show()
Logistic Regression using Mini-batch SGD
batch_size=8
def sgd(x,y,batch_size):
# initilize w and b
w=np.zeros((x_train.shape[1]))
b=np.zeros(1)
ite=1000 #number of iteration
eta=0.7 #learning rate
loss_v=[]
for i in range(1000):
ind=np.random.choice(len(y_train),batch_size)
x_b=x[ind]
y_b=y[ind]
p=sigmoid(x_b,w,b)
l=loss(x_b,w,y_b,b)
gradient=grad(x_b,y_b,w,b)
w=w- (0.1*gradient)
b=b-(eta*np.sum(p-y_b)/x.shape[0])
if i%10==0:
loss_v.append(l)
if i%100==0:
print('loss',l)
return w,b,loss_v
w,b,loss_v=sgd(x,y,32)
y_pred=sigmoid(x_test,w,b)
for j,i in enumerate(y_pred):
if i<0.5:
y_pred[j]=0
else:
y_pred[j]=1
print('test accuracy',accuracy(y_pred,y_test))
loss 0.6931471805599448
loss 0.6278149588111854
loss 0.6035356489914048
loss 0.4881741340927539
loss 0.5486975396008116
loss 0.4963472981460031
loss 0.4807055091535177
loss 0.5649417248839724
loss 0.4608513419074556
loss 0.5171429870812208
test accuracy 0.84

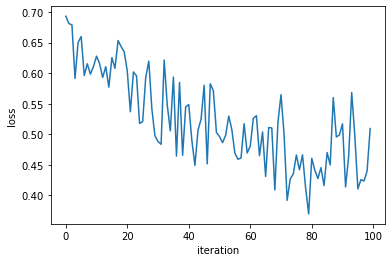

plt.plot(range(len(loss_v)),loss_v)
plt.xlabel('iteration')
plt.ylabel('loss')
plt.show()
Logistic Regression using SGD with momentum
batch_size=8
def sgdmomentum(x,y,batch_size):
# initilize w and b
w=np.zeros((x_train.shape[1]))
b=np.zeros(1)
ite=1000 #number of iteration
eta=0.7 #learning rate
alpha=0.9
loss_v=[]
v_t=np.zeros((x_train.shape[1]))
v_b=np.zeros(1)
for i in range(1000):
ind=np.random.choice(len(y_train),batch_size)
x_b=x[ind]
y_b=y[ind]
p=sigmoid(x_b,w,b)
l=loss(x_b,w,y_b,b)
gradient=grad(x_b,y_b,w,b)
v_t =(alpha*v_t) + (eta*gradient)
w=w-v_t
v_b=(alpha*v_b) + (eta*np.sum(p-y_b)/x.shape[0])
b=b-v_b
if i%10==0:
loss_v.append(l)
if i%100==0:
print('loss',l)
return w,b,loss_v
w,b,loss_v=sgdmomentum(x,y,32)
loss 0.6931471805599448
loss 0.4220835670845099
loss 0.2941736243371927
loss 0.44537673992679633
loss 0.2871349895011394
loss 0.6241278912840013
loss 0.34683687828696796
loss 0.18828219280440267
loss 0.4223695477823046
loss 0.34499265763927867

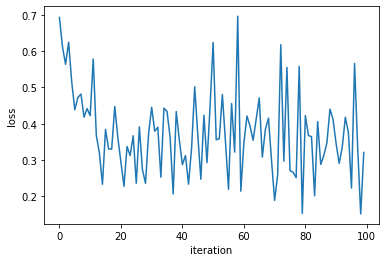

plt.plot(range(len(loss_v)),loss_v)
plt.xlabel('iteration')
plt.ylabel('loss')
plt.show()
#Predction
y_pred=sigmoid(x_test,w,b)
for j,i in enumerate(y_pred):
if i<0.5:
y_pred[j]=0
else:
y_pred[j]=1
print('test accuracy',accuracy(y_pred,y_test))
test accuracy 0.86
Logistic Regression using Using sklearn
from sklearn.linear_model import LogisticRegression
model= LogisticRegression()
model.fit(x_train,y_train)
y_pred=model.predict(x_test)
print('test accuracy',accuracy(y_pred,y_test))
test accuracy 0.82
